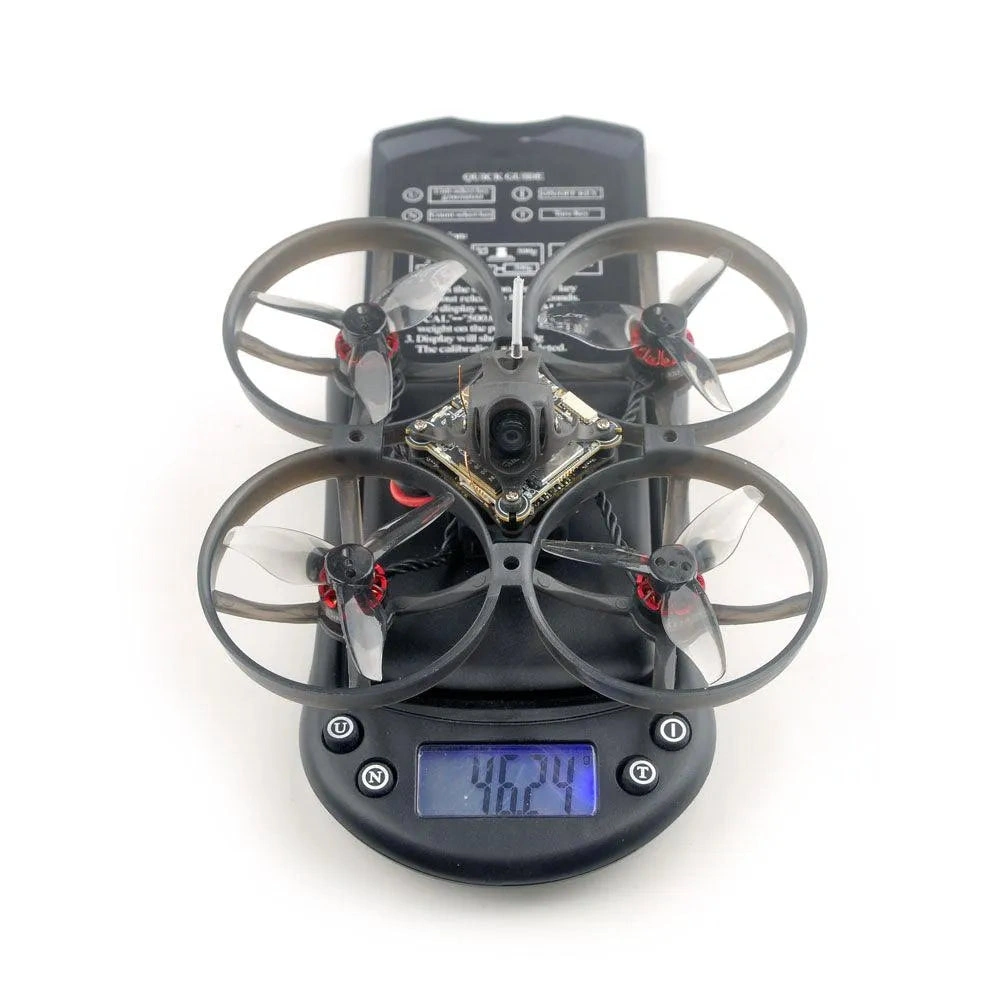

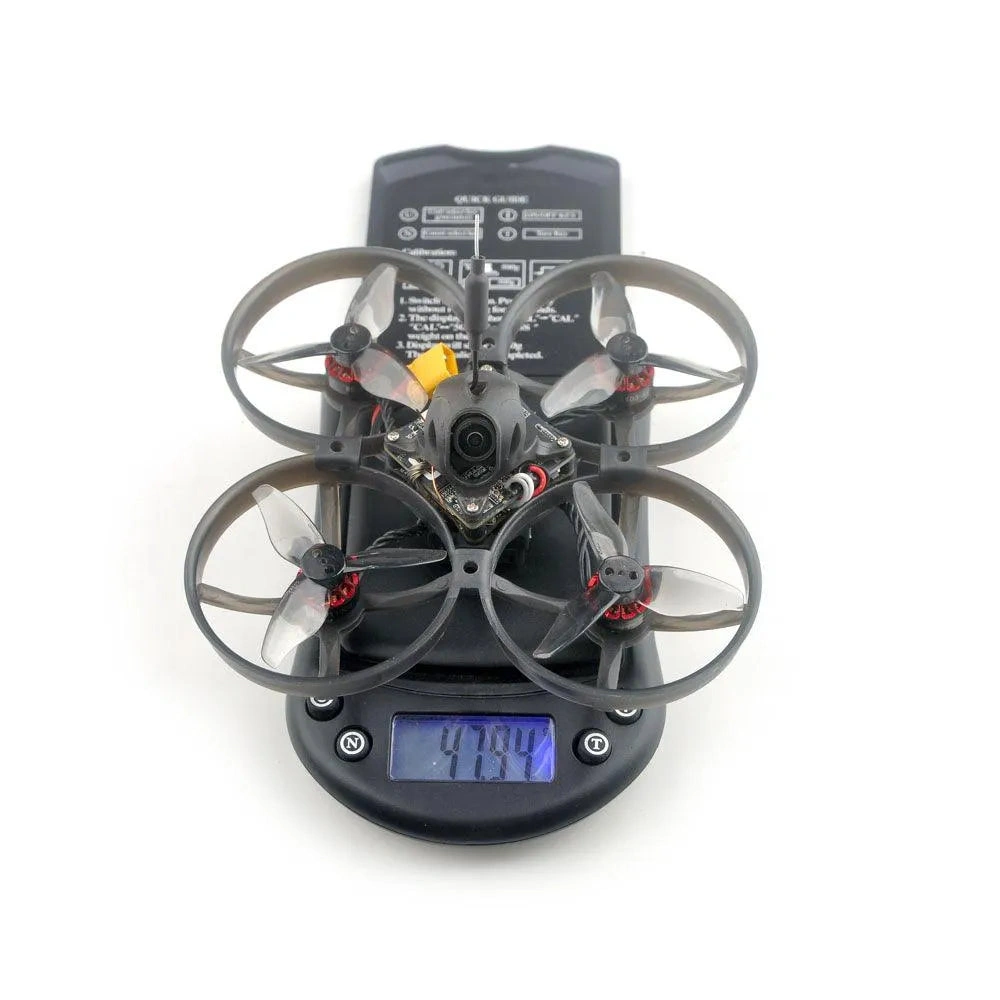

Happymodel Mobula8 2S 85mm Digital HD Micro FPV whoop Drone

Happymodel New Mobula8 Digital HD Micro FPV whoop comes with a new flight controller which is specific for Digital HD CINEWHOOP. Built in UART ExpressLRS receiver and 12A 4-IN-1 BLheli_S ESC. The same Brushless motor and Gemfan 2023 propeller like the Mobula8 Analog version. Comes With DJI O3, Walksnail avatar and HDZERO VTX option. Smooth flight and High definition video transmission would bring us exited FPV experience.

Features:

New CrazyF405 ELRS HD flight controller
Powerful and Smooth
UART ExpressLRS receiver
Built-in blackbox for Gyroflow and PID Tune

Recommend 2S 450mah/550mah/650mah battery (Not include)

GNB 450mAh 2S HV LiPo Battery 7.6V 80/160C XT30 Plug

GAONENG/GNB 530mah 2S 7.6V HV 90C LiPo Battery XT30 Plug

Spare parts specifications:
Motor:
Mode: EX1103 KV11000
Configu-ration:9N12P
Stator Diamter:11mm
Stator Length:3mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ13.5mm*15.5mm
Weight(g):3.8g
No.of Cells(Lipo):1-2S

Propellers
Weight:0.88g
Material: PC
Pitch:2.3inch
Props Dia:52.17mm
Center Thickness:5mm
Center Hole Dia:1.5mm

Flight controller
MCU: STM32F405RGT6 (168MHZ, 1Mbyte FLASH)
GYRO Sensor: BMI270 (SPI connection)
Mount hole size: 25.5mm*25.5mm
Power supply: 1-2S battery input (DC 2.9V-8.7V)
Built-in 12A(each) Blheli_S 4in1 ESC
Built-in Serial ExpressLRS 2.4G
Built-in BMP280 Barometer
Built-in 8MBp blackbox
Built-in voltage meter sensor , voltage meter scale 110
Built-in current meter sensor , current meter scale 470

Onboard 4in1 ESC
Power supply: 1-2S LiPo/LiPo HV
Current: 12A continuous peak 15A (3 seconds)
Support BLHeli_S Bluejay firmware
Factory firmware: Bluejay ESC V0.19
Firmware target: Z-H-30
Default protocol: DSHOT300
When use 1s battery and high KV 0702/0802 motors, should set startup power to 1100/1200

Onboard UART ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna: enameled copper wire 31mm length
Telemetry output Power: <12dBm
Default firmware version: ExpressLRS V3.0.1
Firmware target: HappyModel EP 2400 RX
Could update firmware via ExpressLRS configurator

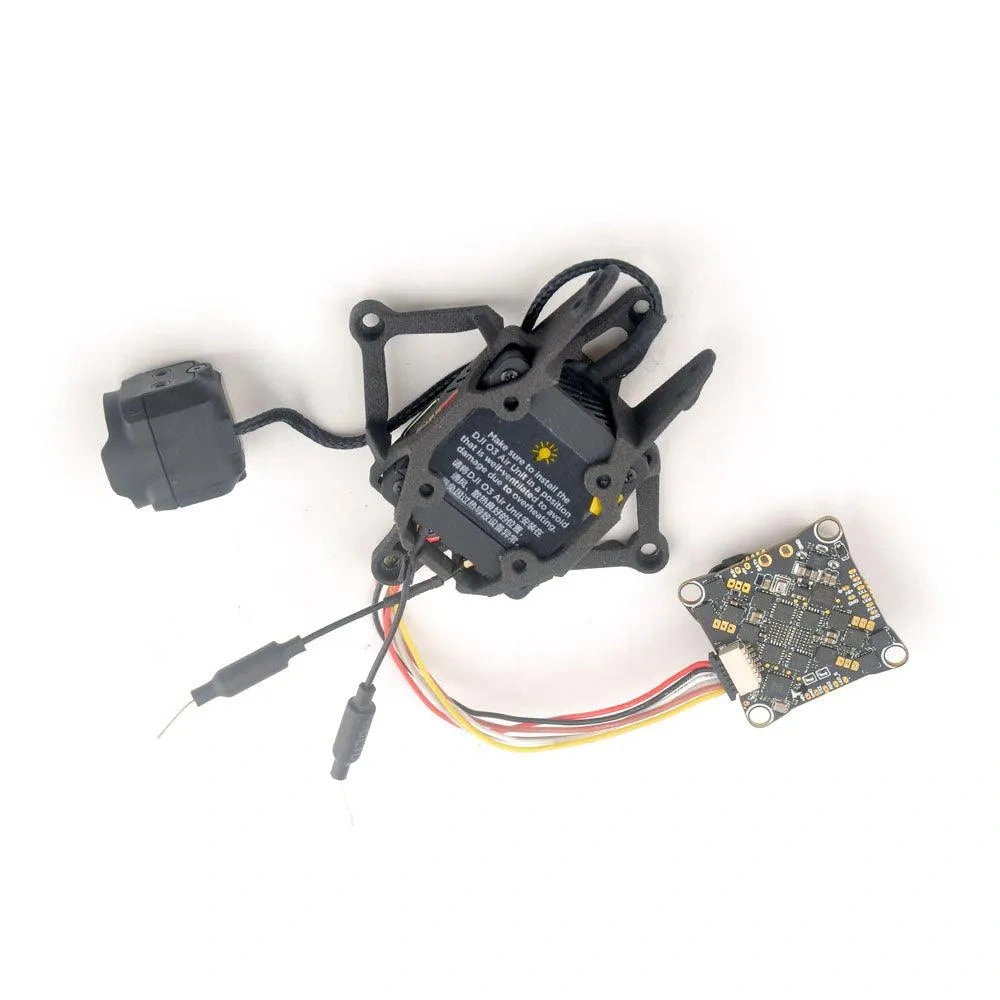

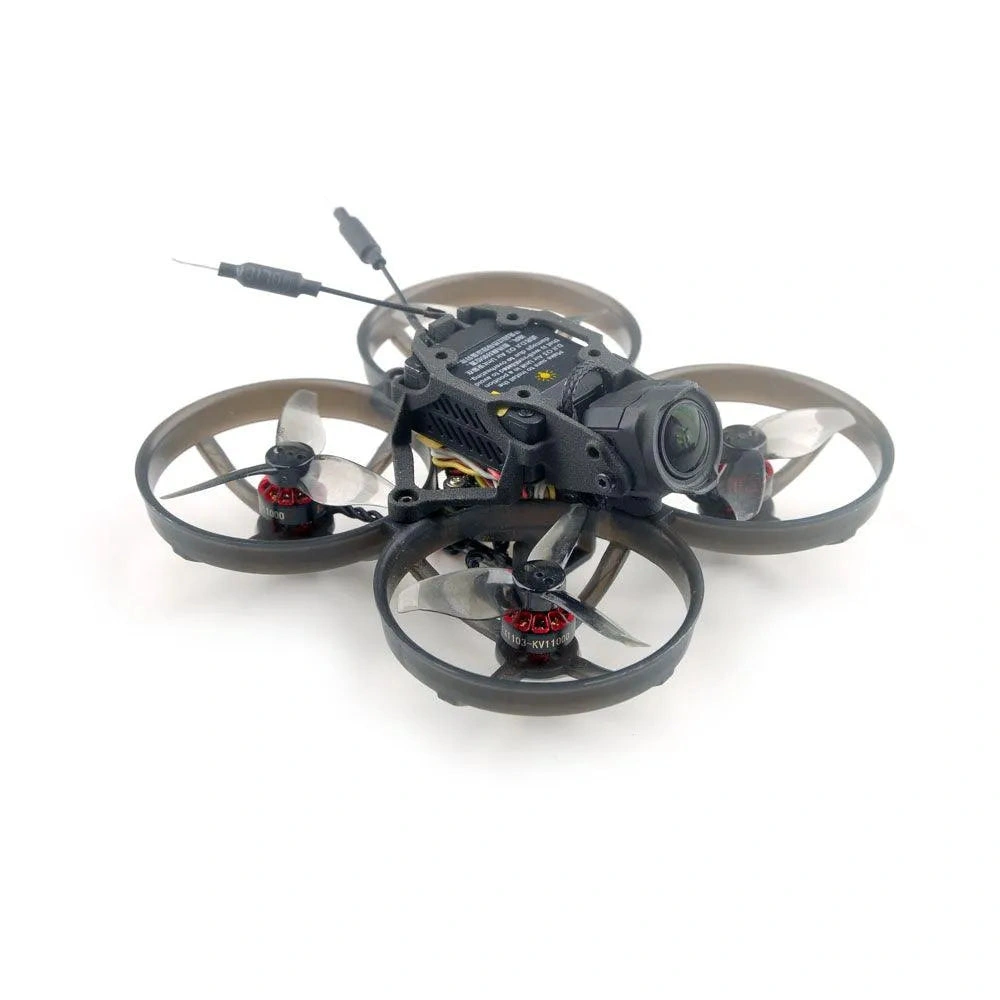

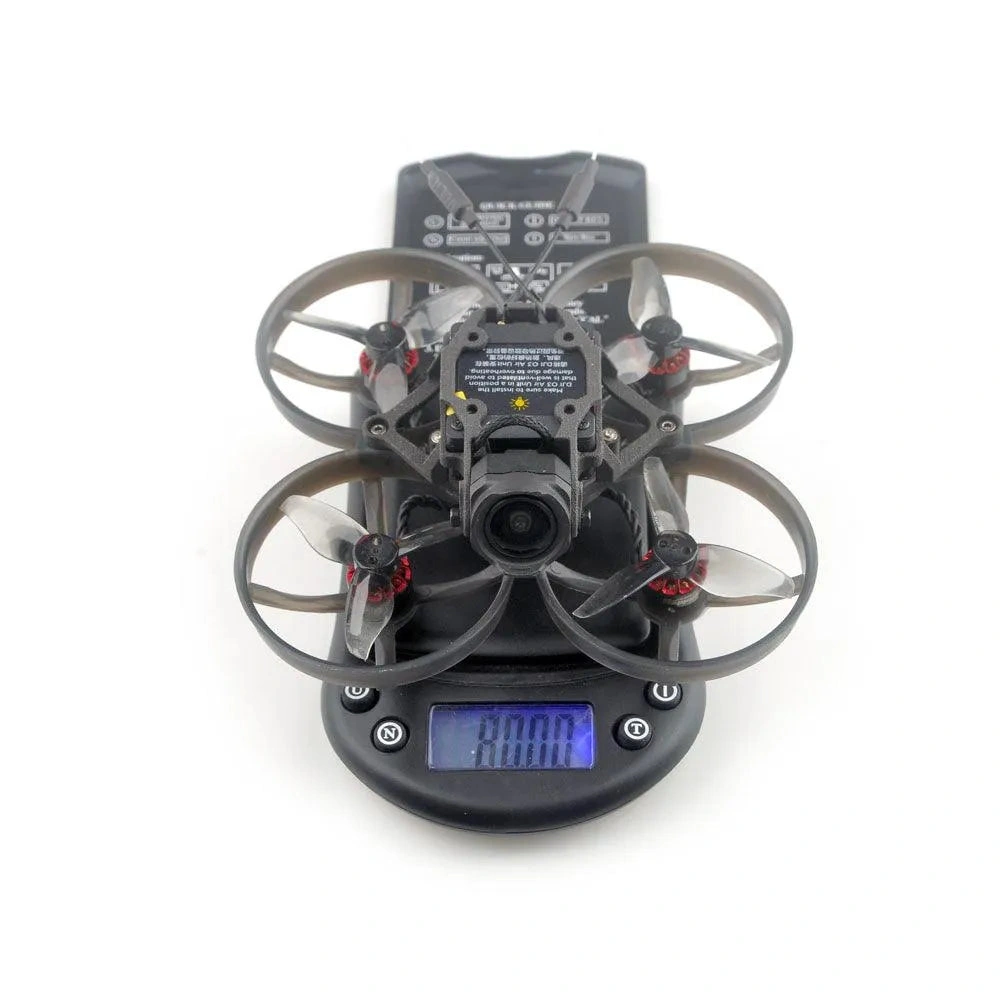

DJI O3 Air Unit
Works with DJI FPV Goggles V2, DJI Goggles 2, and DJI FPV Remote Controller 2
D-Cinelike mode for Vivid Colors
Flagship O3+ Video Streaming
Customizable Canvas Mode
155° Super-Wide FOV
1/1.7-Inch Sensor
Compact in Size

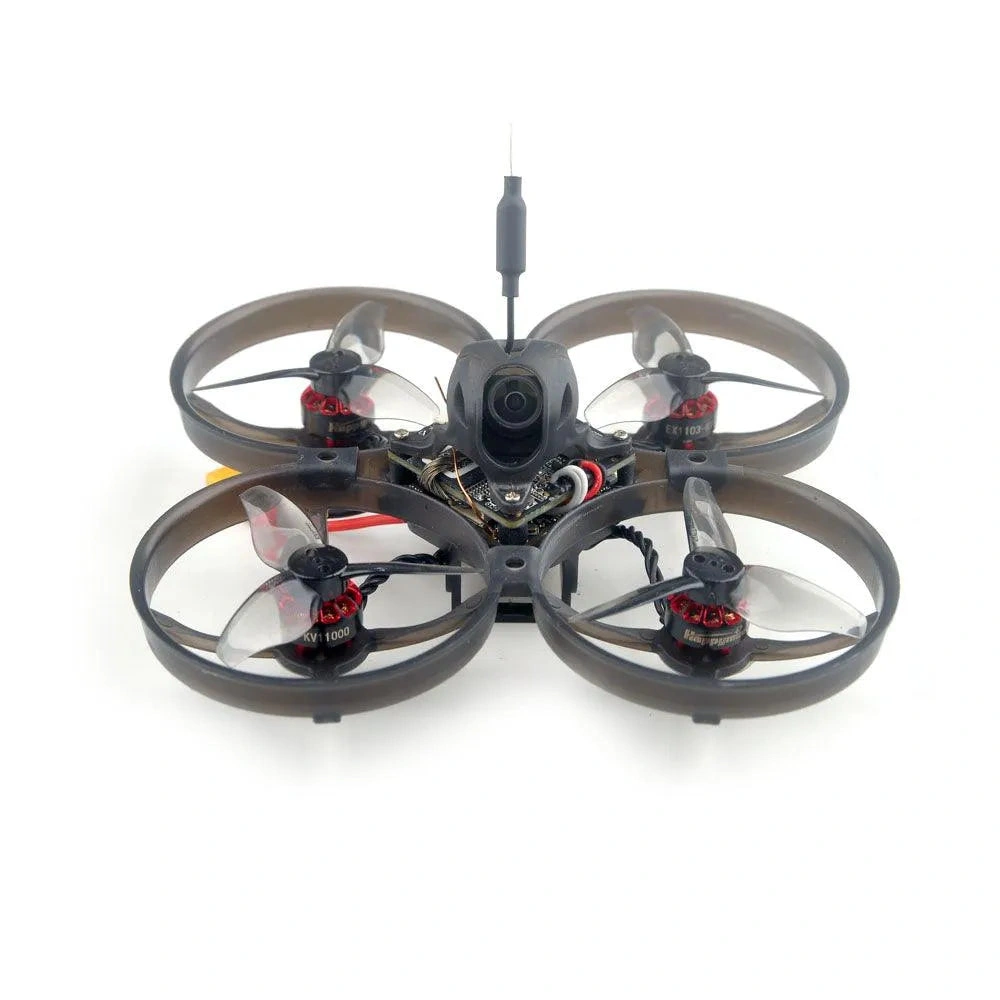

Walksnail version Camera
Model: Avatar lite camera
Image Sensor: 1/2.7”1nch
Resolution: 1080P/60fps,720P/120fps,720P/60fps
Ratio: 16/9 4/3
Lens: 2.1mm
FOV: 170°
Aperture: F2.0
Shutter Rolling: Rolling shutter
Min.Illumination: 0.001Lux
Weight: 1.8g
Dimensions: 14*14*16mm
VTX
Model: Avatar mini 1s module
Communication Frequency: 5.725-5.850GHz
Transmitter Power (EIRP): FCC:<25.5dBm;CE:<14dBm;SRRC:<20dBm;
MIC:<25dBm
I/O Interface: JST1.0*6(Power in)JST0.8*4(USB)
Mounting Holes: 25.5*25.5mm
Dimensions: 30*30*6.5mm
Storage: 8G
Recording: 1080p/720p
Weight: 5.1g
Operating Temperature: -20-40℃
Channels: 8
Wide Power Input : 3.1V-5V
Supported FC System Betaflight
OSD: Canvas mode
Bitrate: 25mbps 50mbps
Latency:Average delay 22ms
Antenna: IPEX

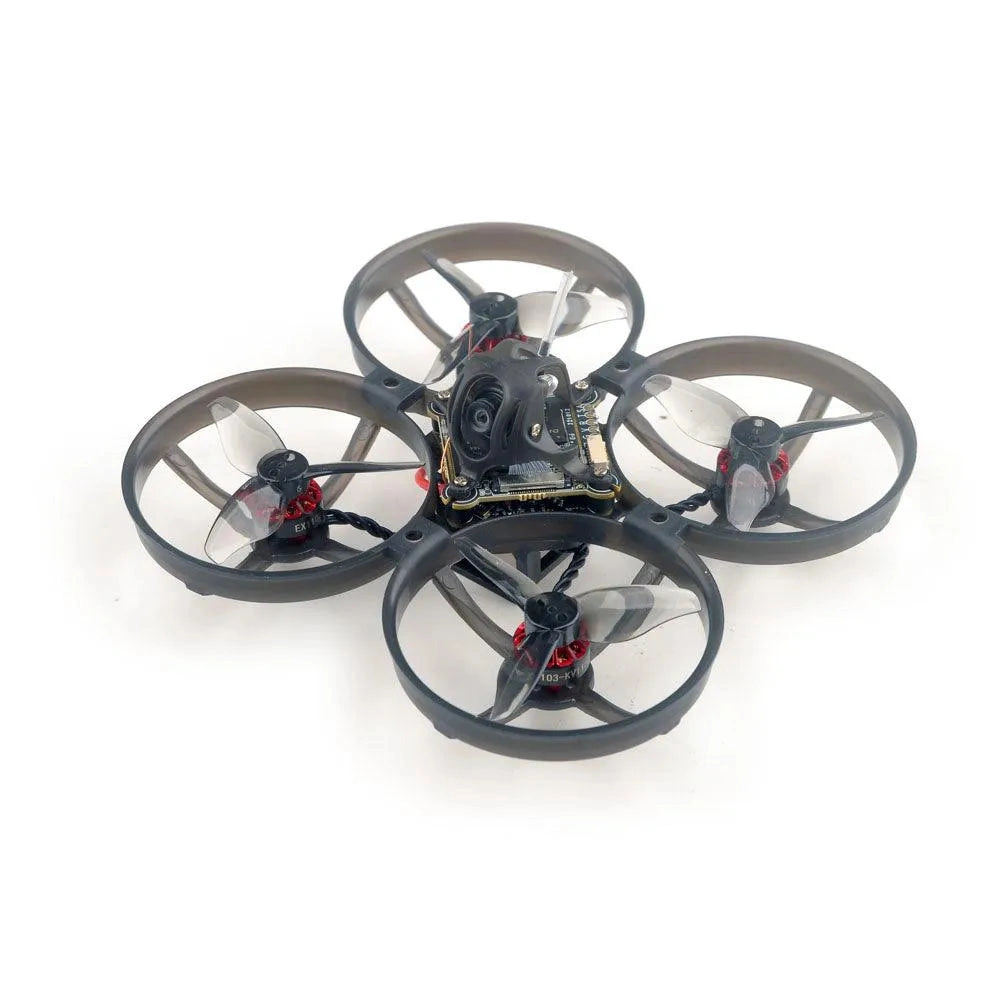

HDZERO Version
HDZero Nano Lite Camera
14x16x11 mm
1.5gram
0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor
Excellent low light performance
Fov:
4:3: D:130° H:108° v:84°
16:9:D:122° H:108° V:65°
HDZero Whoop Lite VTX
1-3S Input
25mW/200mW RF Output-SmartAudio Support
25.5x25.5 M2 Soft Mounting- Antenna Retention
Removable Shielding Box- 32.5x32.5mm(29x29mm inner)
4.5grams/4mm Thickness (without shielding)

Package Included:
1X Mobula8 Frame
1X CrazyF4HD ELRS flight controller firmware target:BETAFLIGHTF4
4X EX1103 KV11000 brushless motor
1X Gemfan Hurricane 2023 tri-blade propellers(4cw+4ccw)

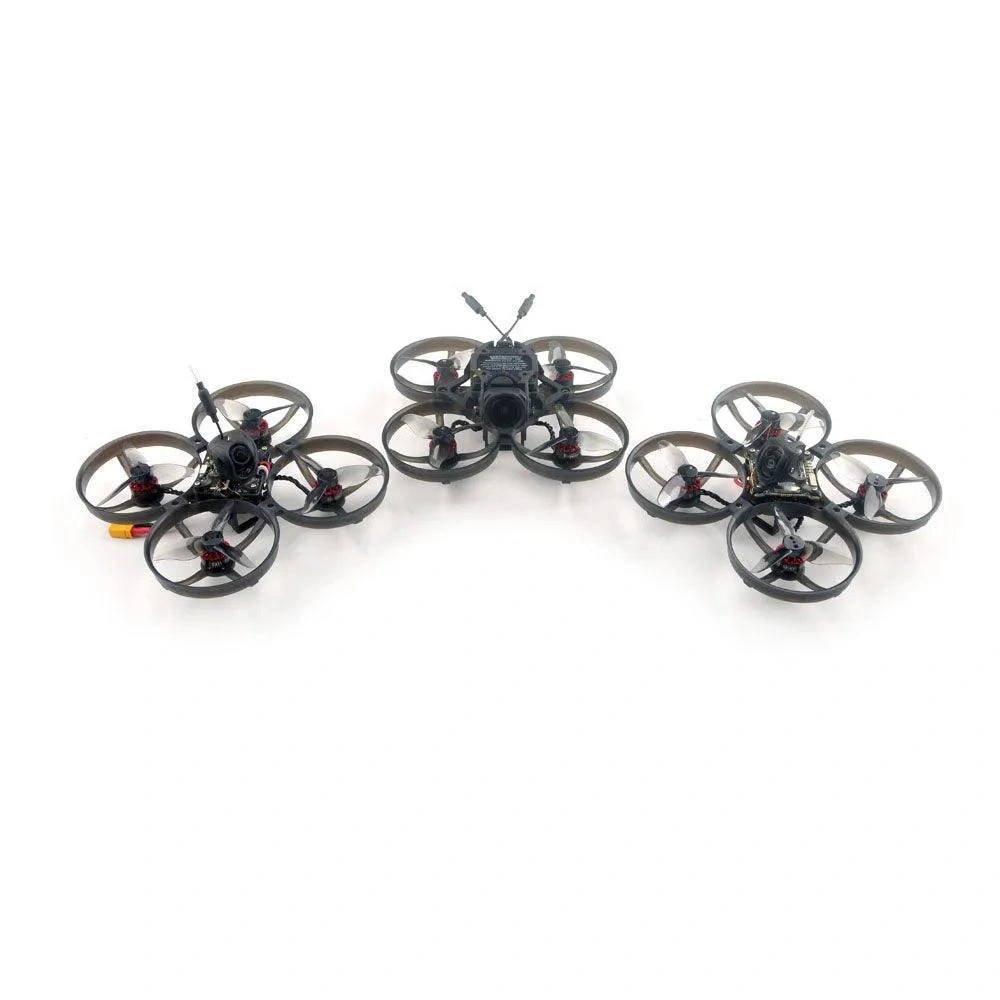

Option1: DJI O3 Air unit
Option2: Walksnail avatar HD Mini 1S lite kit
Option3: HDZERO Whoop Lite bundle
Option4: No VTX and camera version
1X Canopy
1X Screw driver
