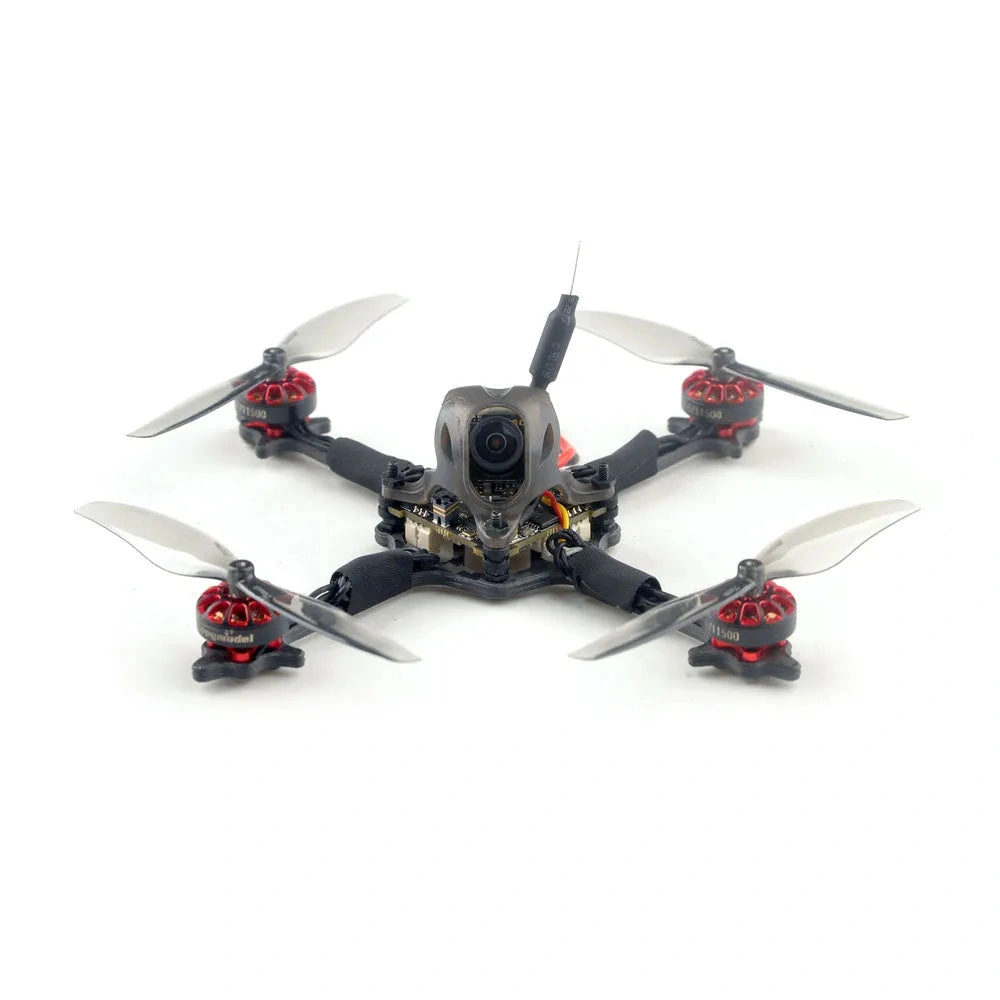

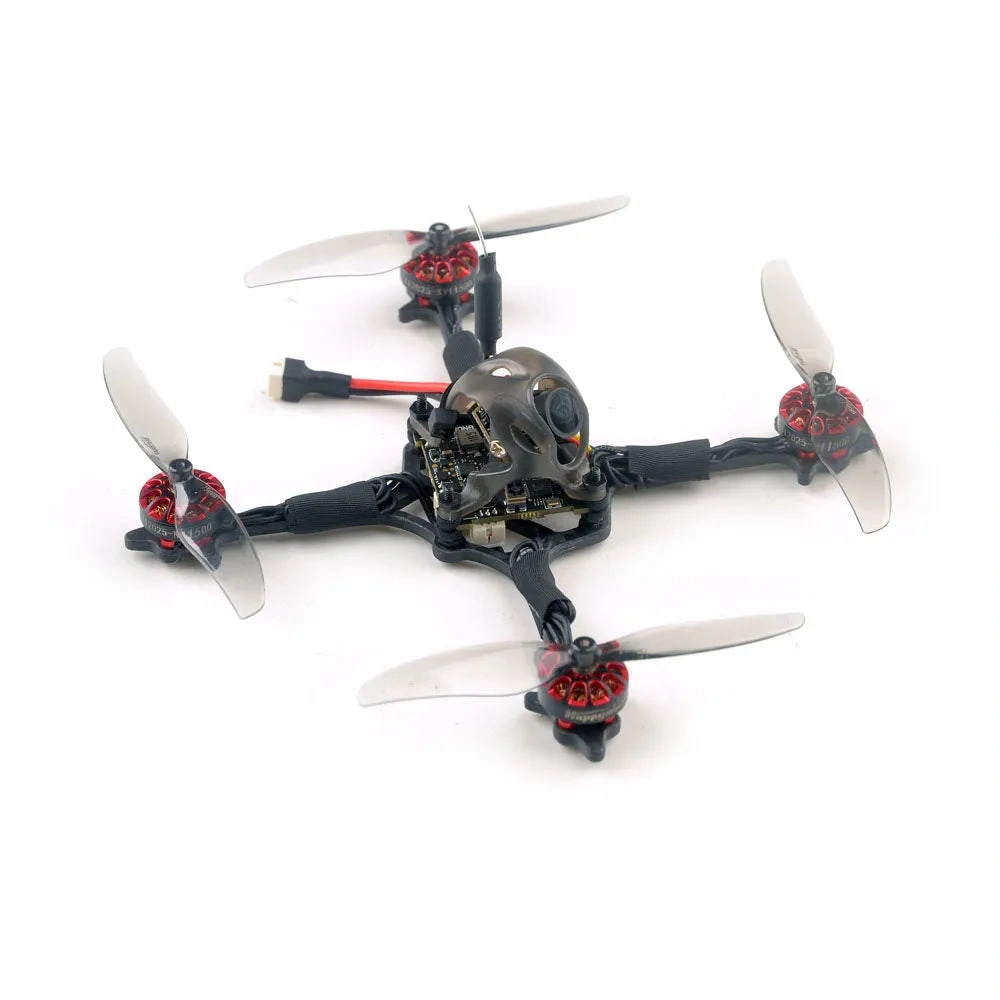

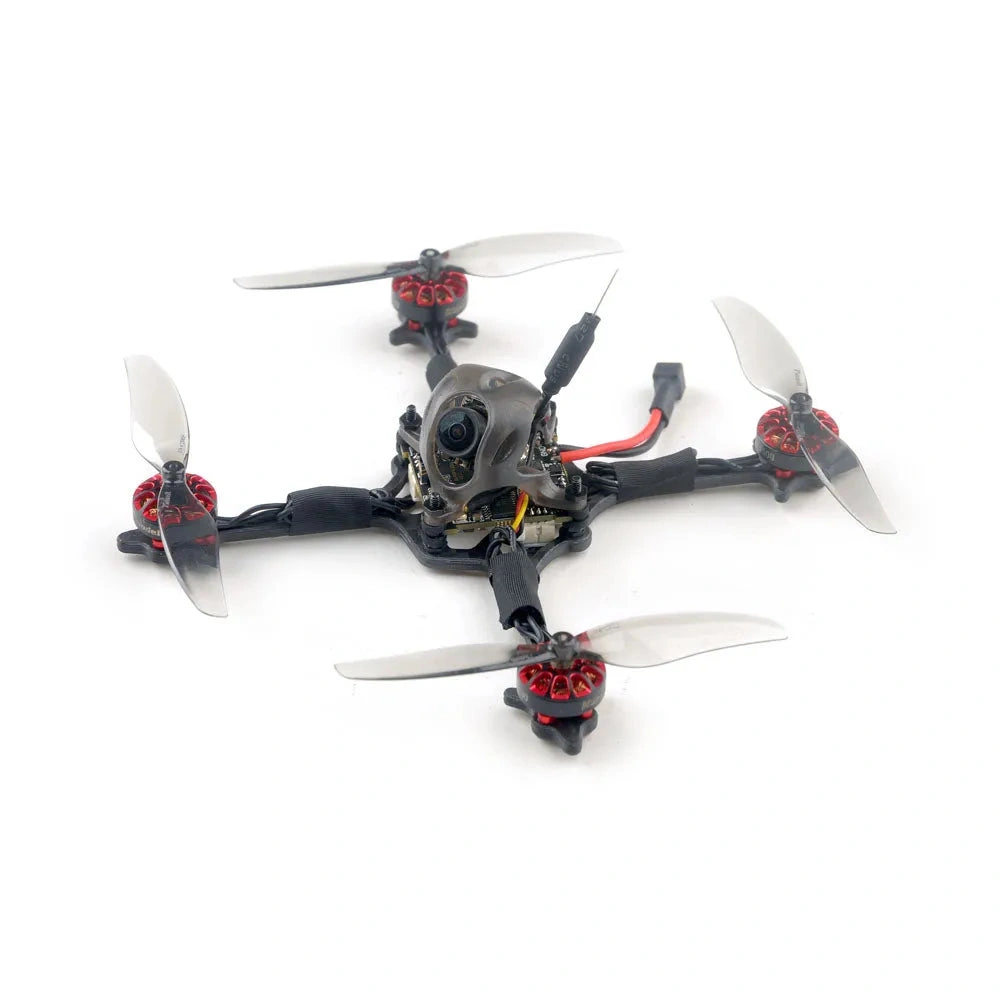

Happymodel Crux3 1S ELRS 3inch toothpick FPV Racer Drone
Note: The Caddx peanut camera is not included, you can buy it HERE
Features:
40gram 1s brushless Toothpick drone
AIO Flight controller with ELRS Receiver and 5.8G VTX
CADDX ANT Camera
New 1202.5 KV11500 brushless motor
Recommend to use 1s 450mah/650mah/660mah/720mah battery

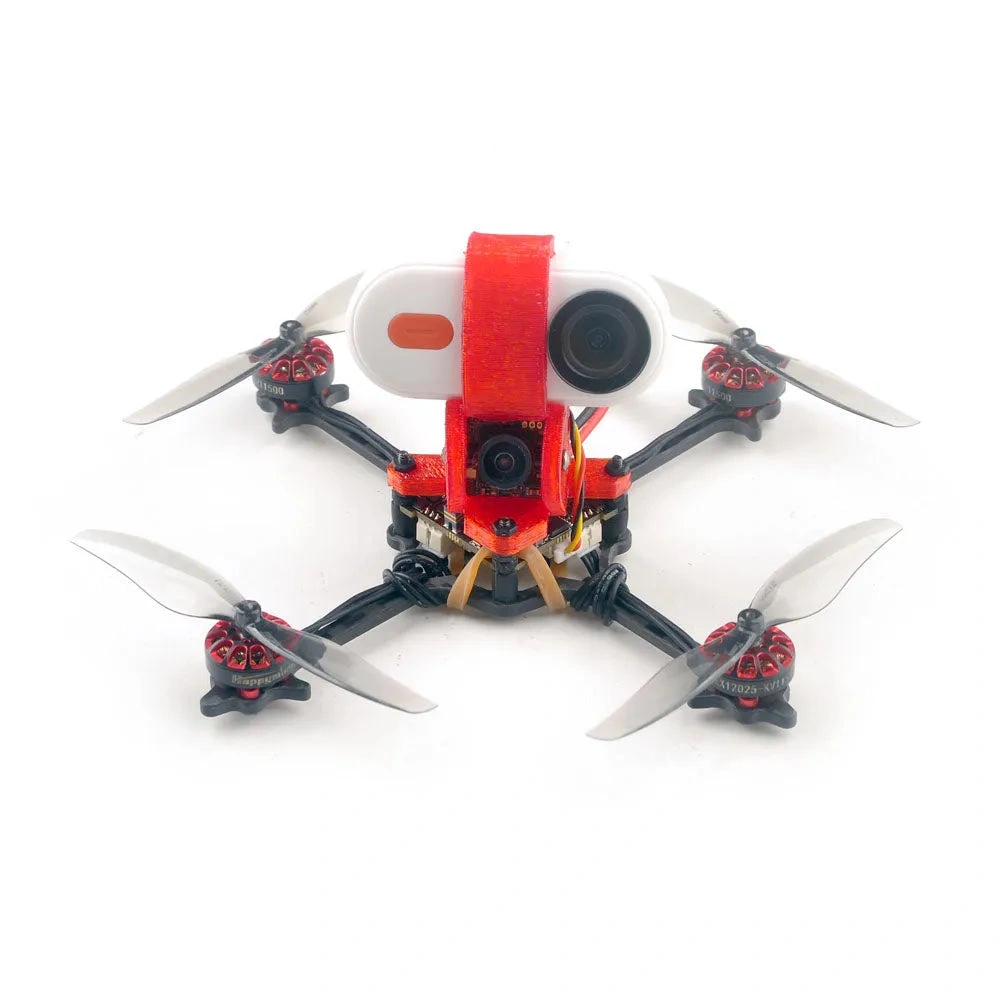

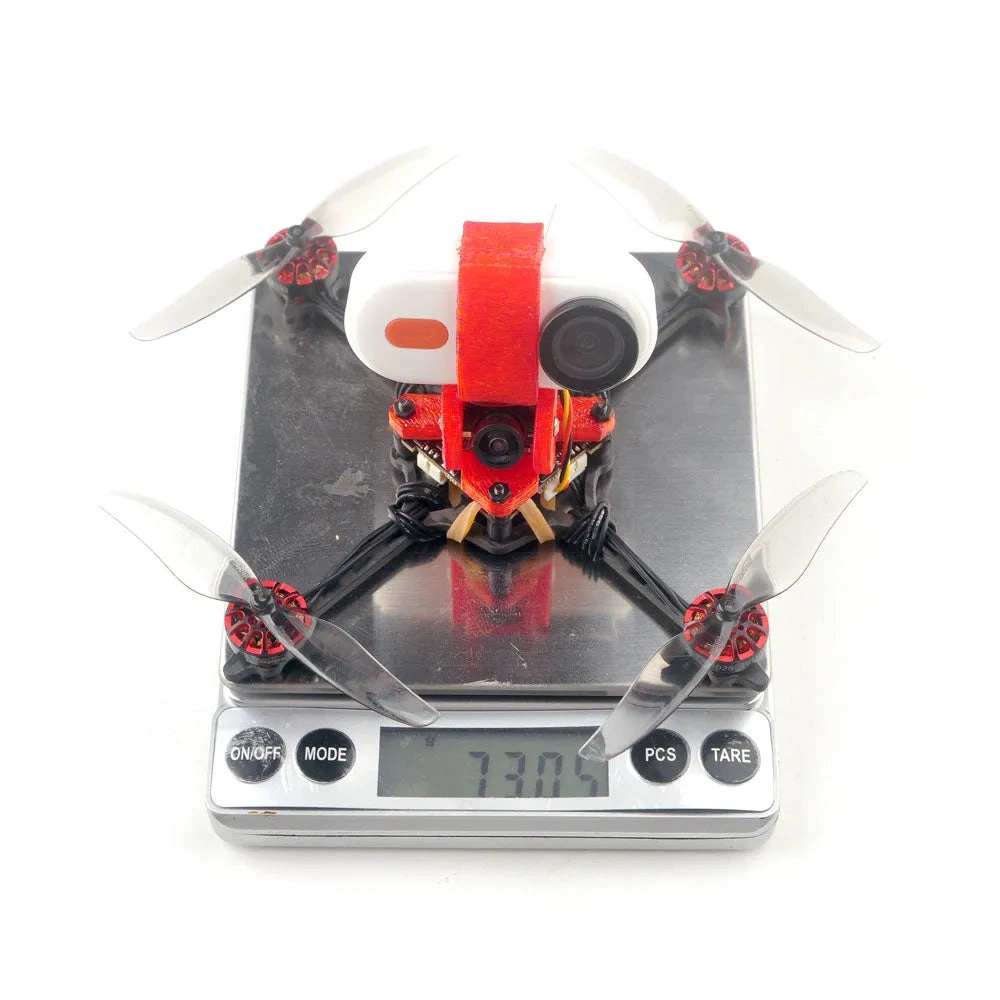

Compatible with CaddxFPV Peanut and Insta360 GO2
Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery
Recommended Batteries (Click the picture for the product link):
Specifications：
Brand Name: Happymodel
Item Name: Crux3 1S ELRS
Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)

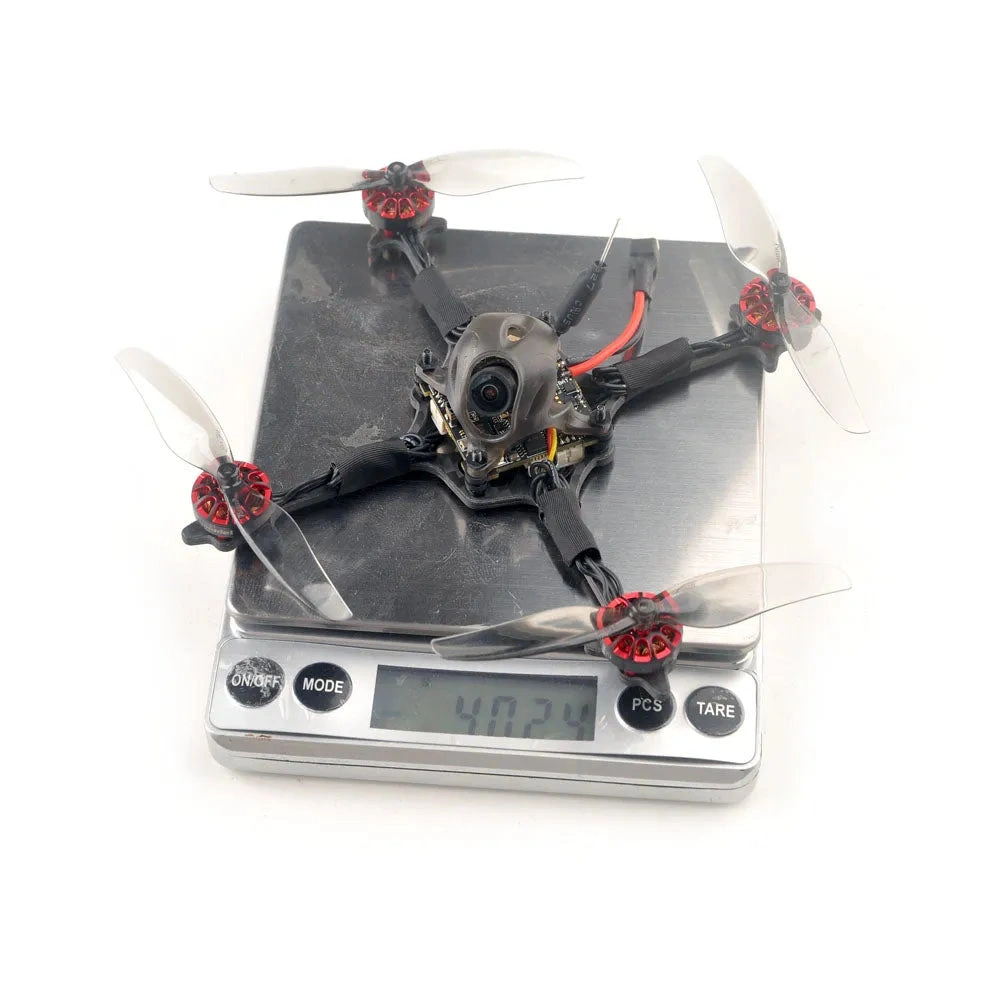

Weight: 40g(without battery)
Motor:
Mode: EX1202.5 KV11500
Configu-ration:9N12P
Stator Diamter:12mm
Stator Length:2.5mm
Shaft Diameter:Φ1.5mm
Motor Dimension(Dia.*Len):Φ14mm*14.5mm
Weight(g):4.4g
No.of Cells(Lipo):1S
Propellers
Gemfan 75mm
Center Thickness:5mm
Prop Diameter:75mm
Center Hole diameter:1.5mm
Pitch: 0.9in
Flight controller
MCU:STM32F411CEU6 (100MHZ, 512K FLASH)
Sensor: MPU-6000(SPI connection)
Original whoop size compatible
Power supply: 1S battery input (DC 2.9V-4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in 5.8G VTX
Built-in SPI ExpressLRS 2.4GHz receiver
Built-in 5V 1A BEC Flight controller
firmware target: CRAZYBEEF4SX1280
Onboard 4in1 ESC
MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV
Current: 5A continuous peak 6A (3 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_7.HEX
Default protocol: DSHOT300
Onboard SPI ExpressLRS 2.4GHz Receiver
Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHz
Antenna : SMD antenna
Telemetry output Power: <12dBm
Receiver protocol to flight controller: CRSF
Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest
Onboard 5.8g VTX
Output power: 25mw~200mw switchable
Frequency: 40CH
Input voltage: 3.3V 5.5V
Current consumption: 300mA(type)
Frequency: 5.8GHz 5bands 40 channels
With Race band
Smartaudio Ready
Caddx ANT 1200tvl camera
Image Sensor: 1/3' CMOS Sensor
Horizontal Resolution: 1200 TVL
TV System: NTSC or PAL
IMAGE: 16:9 or 4:3
Synchronization: Internal
Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
S/N Ratio : >52dB (AGC OFF)
Video Output: CVBS
Lens: 1.8mm
Min. Illumination: [email protected]
Auto Gain Control: YES
BLC: YES
WDR: Global WDR
DNR: 3D DNR
Dimensions: 14*14mm(with bracket to 19*19mm)
Wide Power Input: DC 3.7-18V
Work Temperature: -20℃~+60℃
Weight: 2g (N.W.)

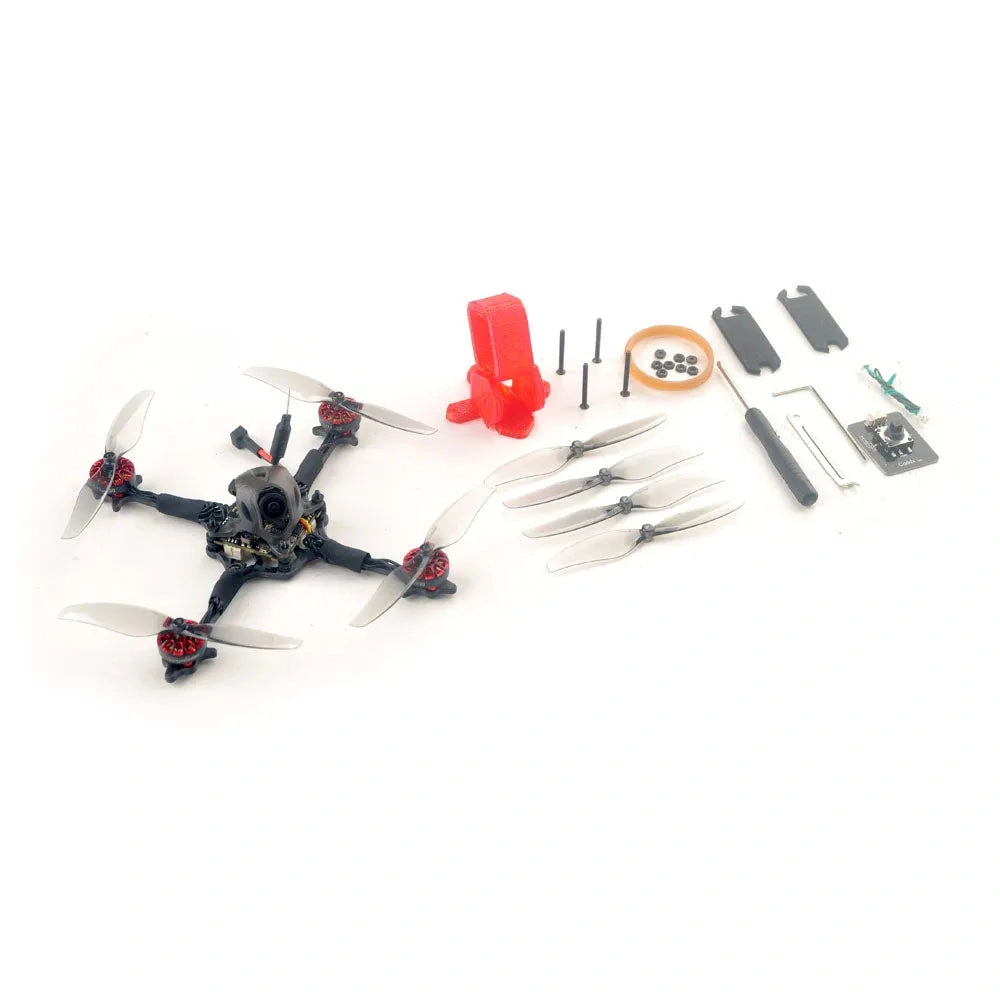

Package included:
1x Crux3 Frame and canopy
1x ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver
4x Happymodel EX1202.5 KV11500 brushless motor
1x Gemfan 75mm bi-blade Propellers(4cw+4ccw)
1x Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera
1x 5.8G 25mw~200mw 40ch vtx (Flight controller built-in)
1x Screw Driver
1x Propeller disassemble tool
1x 3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut
1x Happymodel Handbag
